Mamod SE2A

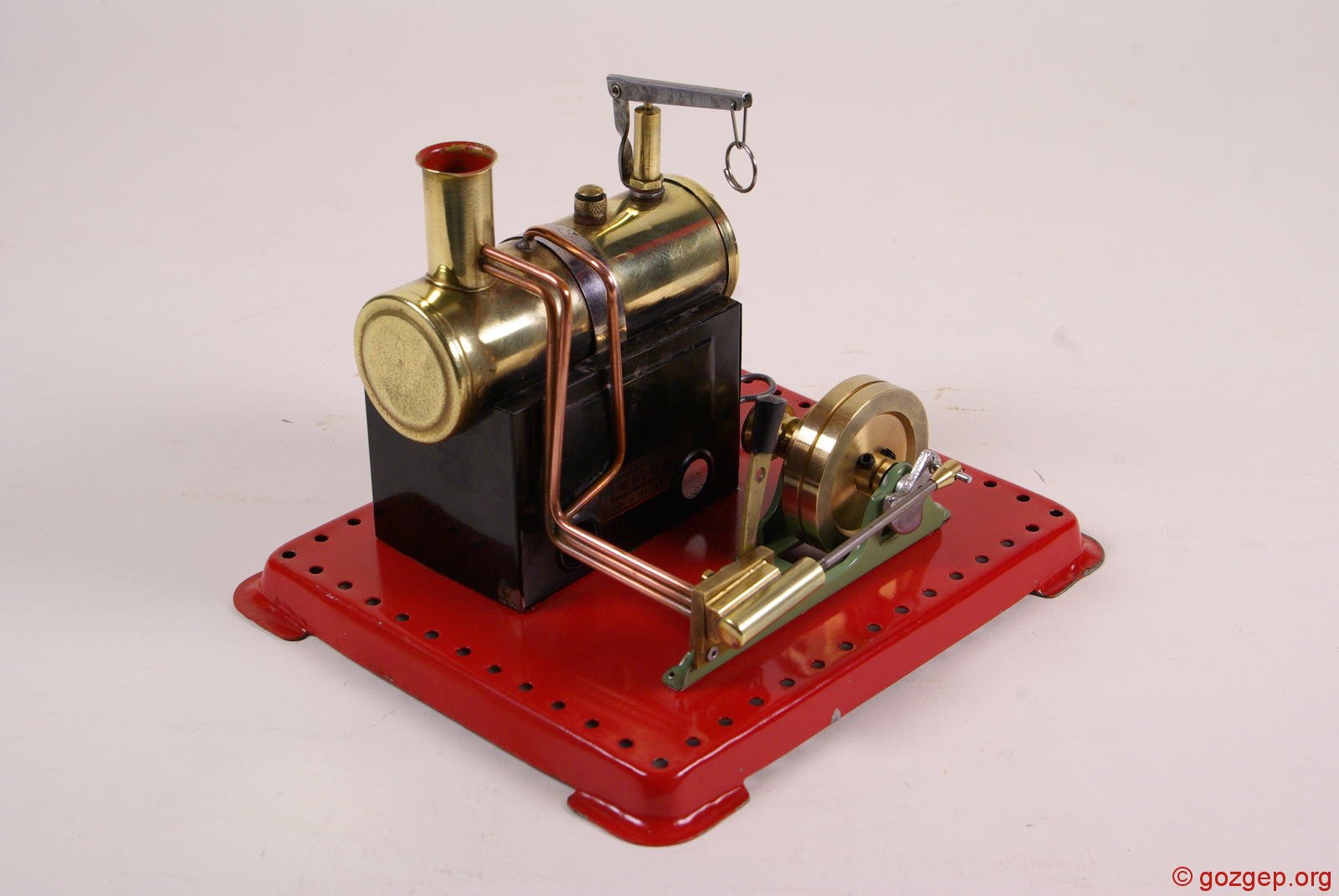

This a reversible Mamod SE2A, stationary model steam engine, made in England in the early 1970’s. It is in almost original condition. The pistons has been replaced with CJW Steam adjustable piston. The original 64 mm 65 gram flywheel has been replaced with a 300 gram wheel, custom made by CJW Steam.

This has a groove on its outside rim, plus an additional 35 mm pulley turned into one side, both intended for turning small generators. However, we are keeping  the original parts so that the machine can be restored more closely to its original state, if need be.

Photographs

[Show picture list]

Technical Information

• Base Colour: red
• Base Material: painted steel
• Base Meccano Compatible: yes
• Boiler Diameter: 44.45 mm
• Boiler Length: 117 mm
• Boiler Material: brass
• Boiler Pressure (working): 1.0 bar
• Boiler Volume (absolute): 180 ml
• Burner Capacity: 18 ml
• Burner Depth: 24 mm
• Burner Length: 70 mm
• Burner Material: steel with fibreglass wadding
• Burner Type: vaporising methylated spirit
• Burner Width: 34 mm
• Chimney: fixed brass
• Country of Origin: England
• Cylinder Type: oscillating
• Flywheel Diameter (custom): 54.1 mm
• Flywheel Diameter (original): 53.54 mm
• Flywheel Mass (custom): 300 grams
• Flywheel Mass (original): 64 grams
• Flywheel Shaft Diameter: 4.76 mm
• Known Modifications: replaced flywheel with 300 gram version with 35mm and 54 mm integral pulleys, manufactured by CJW Steam
• Manufacturer: Mamod
• Model: SE2a
• Mounted on: pre-drilled hardwood plinth c/w Mamod workshop tools. CJW steam adjustable piston.
• Number of Cylinders: 1
• Overall Dry Mass (customised): 946 grams
• Overall Dry Mass (unmodified): 710 grams
• Piston Bore: 7.91 mm
• Piston Stroke: 18 mm
• Solder Type: low temperature lead
• Tube Diameter: 3.175 mm
• Tube Material: copper
• Water Level Indication: water level plug
• Whistle: top lever type
• Year of Manufacturer: Early 1970s
